363 Small Block Ford Pump Gas Engine
Pump Gas

363 Small Block Ford Pump Gas Engine $14,750

363/525HP $14,750
Less Carb & Ignition

For A High Horsepower Replacement For Your Old 289 Or 302 Powered Street Car, We Proudly Offer This Solution - Impeccable Street Manners And The Reliability That Only A Hand Built And Dyno Tested Engine Can Deliver.

Quality And Performance ... Priceless!!

  • Horsepower
  • Torque
  • Bore & Stroke
  • Compression Ratio
  • Fuel Requirement
  • 525 @ 6000 RPM
  • 490 @ 4800 RPM
  • 4.125 x 3.400
  • 10.25 to 1
  • 91 Octane
  • Dart SHP 8.2" Block w/Splayed 4 Bolt Steel Billet Main Caps
  • Lunati 4340 3.400" Stroke Forged Steel Crank
  • Molnar 4340 5.400" H-Beam Rods w/ARP2000 Bolts
  • Clevite 77 "H" Series Main & Rod Bearings
  • Custom 10.25-1 Forged Aluminum Pistons
  • Plasma Moly 1.0/1.0/2.0mm Ring Set
  • SSRE/Comp Cams Hydraulic "Street Roller" Camshaft
  • High Performance Hydraulic Roller Lifters
  • Cloyes True Roller Timing Set w/Fuel Pump Eccentric
  • AFR 185cc Renegade Fully CNC Ported Aluminum Heads (1)
  • 2.020"/1.600" Stainless Steel Valves
  • Hydraulic Roller Springs w/Steel Retainers
  • ARP High Performance Head Bolts
  • Comp Cams 1.6 Ultra Pro Magnum Roller Rockers
  • Chromemoly (1) Piece .080" Wall Pushrods
  • FelPro HP Head Gaskets w/Pre-Flattened Steel Wire
  • Edelbrock RPM Air Gap Aluminum Intake
  • Canton Road Race Series Oil Pan w/Windage Tray (2)
  • Melling HP Oil Pump w/Canton Pickup
  • OEM Style Front Cover w/ATI Billet Timing Pointer
  • High Performance Harmonic Balancer
  • Complete Assembly Internally Balanced (3)
  • Individually Dyno Tested & Tuned
  • Actual Dyno Sheet Provided
  • Footnotes:
  • (1) Exhaust Ports In Standard Location.
  • (2) Specify Front or Rear Sump at time of order.
  • (3) Neutral Balance Flexplate/Flywheel Required.
Holley Sniper EFI Package$2195
Includes: Holley Super Sniper EFI Unit, Sniper EFI Touchscreen LCD Programmer, Bosch LSU 4.9 Wideband Oxygen Sensor, Stainless Steel Clamp-On Oxygen Sensor Installation Kit (May Also Be Welded), Hyperspark Distributor and SSRE Custom Ignition Wires w/Looms. Base Tuneup and Parameters Set and Calibrated on Your Engine.
Igniton Components
Hyperspark Ignition Coil $39
Fuel System Components
Why Buy A Carburetor From Us?

Yes, you can certainly purchase a stock carb from the big mail order companies but we've seen carbs out of the box down on power as much as 40HP and between 15-20HP is common. That's why we disassemble and blueprint EVERY carburetor before we ever bolt it on your engine. We then tune, adjust and jet your carb on your engine so you get every ounce of power that you paid for.

Even if you're considering one of our Engine Kits or simply looking for a replacement carb, the same blueprint work is done and we dyno test it on a comparable engine to yours before it ships!
QuickFuel 780 CFM Vacuum Secondary Carb Package includes: Carb w/Billet Metering Blocks & Throttle Body, Electric Choke, AN Inlets, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.Image Close$750
APD 850 CFM 4150 Series Carb Package includes: 2 Circuit Billet Carb, Phenolic Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.Image Close$995
Mechanical Fuel Pump Package Includes: High Volume Race Design 6 Valve Pump, Braided Fuel Line Inlet Kit w/8AN Lines and Fittings. Plumbed, Installed & Dyno Tested On Your Engine. $395
Igniton Components
MSD Electronic Ignition Package includes MSD Pro Billet Distributor, Steel Distributor Gear, Custom Moroso Wire Set and Loom Kit. Dyno Tested and Calibrated on your engine. $695
MSD 6AL Digital Electronic Ignition Box w/Hi-Speed Rev Limiter $305
MSD 6AL-2 Digital Electronic Ignition Box w/Launch Control & Hi-Speed Rev Limiter $480
MSD Blaster 3 Hi Performance Ignition Coil w/HEI Style Post $65
MSD 8201 Pro Power Coil $159
Connecting Rods
ARP 2000 Rod Bolts $Included
Pistons - Pins - Rings - Bearings
Total Seal TNT "Hellfire" Rings $175
Oil Pumps - Oil Pans - Vacuum Pump
Lokar Custom Locking & Calibrated Dipstick (Upgrade)Image Close$95
Additional Parts - Labor - Accessories
Cometic MLS (Multi Layered Steel) Head Gaskets $125
SFI Approved Harmonic Balancer (Required At All Race Tracks) $150
Master Power Silent Drive Vacuum Pump Kit For Power BrakesImage Close$589
ATI SFI Flexplate - Internally Balanced 157 Tooth 10.5" Bolt Pattern $275
ATI SFI Flexplate - Internally Balanced 164 Tooth 11.5" Bolt Pattern $275
Steel Billet Flywheel - Internally Balanced 157 Tooth 10.5" Bolt Pattern $350
Steel Billet Flywheel - Internally Balanced 164 Tooth 11.5" Bolt Pattern $350
PowerMaster 9603 Hi-Torque Mini Starter. Fits 4.084" block plate with 3/4" depth ring gear. $229
Edelbrock Aluminum "High Volume" Mechanical Water Pump. Clockwise Rotation w/Left Hand Inlet. Natural Finish. Installed With ARP Stainless Steel Hardware. $295

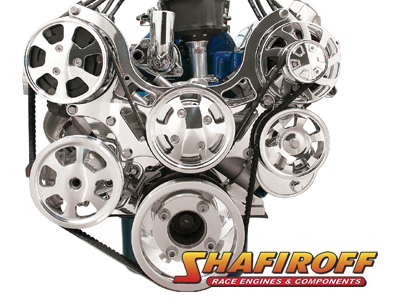

Billet Specialties Tru Trac Serpentine SystemImage Close$Call
Custom Powder Coating Packages Available $Call
