540 Big Block Chevy Aluminum Pump Gas Engine
Pump Gas

540 Big Block Chevy Aluminum Pump Gas Engine $18,150

540 Big Block Chevy Aluminum Pump Gas Engine Shown With Optional Equipment
540/625HP $18,150
Less Carb & Ignition

You Thought Your Friends ZL1 Camaro Was Cool? Wait Until You Pop The Hood On Your Camaro And Show Eveyone What 540 Cubic Inches Of All Aluminum Big Block Power Looks Like!!

  • Horsepower
  • Torque
  • Bore & Stroke
  • Compression Ratio
  • Fuel Requirement
  • 625 @ 5800 RPM
  • 640 @ 4000 RPM
  • 4.500 x 4.250
  • 9.75 to 1
  • 91 Octane

New Brodix Low Profile Intake!
  • World Products Aluminum Block w/4 Bolt Main Caps
  • SSRE/Scat 4340 4.250" Stroke Steel Crank (1)
  • Scat 4340 6.385" I-Beam Steel Rods w/ARP Bolts
  • Clevite 77 "H" Series Main & Rod Bearings
  • Custom 9.75-1 Forged Aluminum Pistons
  • Plasma Moly Ring Set
  • Comp Cams Hydraulic Roller Camshaft (2)
  • High Performance Hydraulic Roller Lifters w/Vertical Bar
  • Rollmaster Billet Timing Set w/IWIS Chain & Torrington Bearing
  • Brodix RaceRite BB2+ 320cc Heads w/Std. Height Ex Ports
  • 2.250"/1.880" Stainless Steel Valves
  • 1.530" Hydraulic Roller Springs & 10° Steel Retainers
  • Custom Head Studs w/Heat Treated Washers
  • Comp Cams 1.7 Ultra Pro Magnum Roller Rockers
  • Chromemoly (1) Piece .080" Wall Pushrods
  • FelPro HP Head Gaskets w/Pre-Flattened Steel Wire
  • Edelbrock "Air Gap RPM" Dual Plane Intake
  • Moroso Street/Strip Oil Pan
  • Melling Race Prepped Oil Pump w/Tig Welded HD Pickup
  • GM Performance Chrome Front Cover w/Billet Timing Pointer
  • Hi-Performance Harmonic Balancer
  • Complete Assembly Internally Balanced
  • Individually Dyno Tested & Tuned
  • Actual Dyno Sheet Provided
  • Footnotes:
  • (1) Precision machined in USA to our custom specifications.
  • (2) Composite Fuel Pump Rod Required with our custom camshafts.
Holley Sniper EFI Package$2195
Includes: Holley Super Sniper EFI Unit, Sniper EFI Touchscreen LCD Programmer, Bosch LSU 4.9 Wideband Oxygen Sensor, Stainless Steel Clamp-On Oxygen Sensor Installation Kit (May Also Be Welded), Hyperspark Distributor and SSRE Custom Ignition Wires w/Looms. Base Tuneup and Parameters Set and Calibrated on Your Engine.
Igniton Components
Hyperspark Ignition Coil $39
"HHR" Hot Hydraulic Roller $995

For Those That Want Even More Power The HHR Is For You! We Use Special "Proprietary Grinds" On Our Custom Hot Hydraulic Roller Cam Along With "Ultra Hi-Rev" Hydraulic Roller Lifters. This Version Also Comes Standard w/CNC Ported Combustion Chambers And Premium Alloy Valve Springs To Maintain Race Engine Performance With Hydraulic Roller Convenience.

  • Dart Pro 1 325cc Aluminum Heads w/CNC Ported Chambers
  • Comp Cams Custom "Proprietary Grind" Hydraulic Roller Cam
  • High Rev Hydraulic Roller Lifters
  • Isky "Enduro Design" Premium Valve Spring Package
  • Horsepower
  • Torque
  • Compression Ratio
  • Fuel Requirement
  • 675 @ 6000 RPM
  • 660 @ 4200 RPM
  • 10.25 to 1
  • 91 Octane
Fuel System Components
Why Buy A Carburetor From Us?

Yes, you can certainly purchase a stock carb from the big mail order companies but we've seen carbs out of the box down on power as much as 40HP and between 15-20HP is common. That's why we disassemble and blueprint EVERY carburetor before we ever bolt it on your engine. We then tune, adjust and jet your carb on your engine so you get every ounce of power that you paid for.

Even if you're considering one of our Engine Kits or simply looking for a replacement carb, the same blueprint work is done and we dyno test it on a comparable engine to yours before it ships!
 $Priceless
Edelbrock 825 CFM Carb Package w/Electric Choke includes: Carb Spacer, Studs & Gaskets. Dyno Tuned and Jetted. Excellent Street Manners With Improved Cold Weather Starting & Increased Fuel Economy. Produces Slightly Less Peak Horsepower.Image Close$595

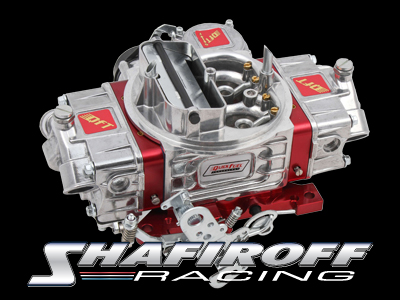

QuickFuel 780 CFM Vacuum Secondary Carb Package includes: Carb w/Billet Metering Blocks & Throttle Body, Electric Choke, AN Inlets, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.Image Close$750
APD 850 CFM 4150 Series Carb Package includes: 2 Circuit Billet Carb, Phenolic Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.Image Close$995
APD 950 CFM 4150 Series Carb Package includes: 2 Circuit Billet Carb, Phenolic Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.Image Close$995
Mechanical Fuel Pump Package Includes: High Volume Race Design 6 Valve Pump, Composite Fuel Pump Rod (Required For Our Custom Cams), Braided Fuel Line Inlet Kit w/8AN Lines and Fittings. Plumbed, Installed & Dyno Tested On Your Engine. $475
Igniton Components
MSD Electronic Ignition Package Includes: MSD Pro Billet Distributor, Hi Perf Gear, Custom Moroso 8mm Wire Set. Custom Curved and Calibrated To Your Engine. $595
MSD 6AL Digital Electronic Ignition Box w/Hi-Speed Rev Limiter $305
MSD 6AL-2 Digital Electronic Ignition Box w/Launch Control & Hi-Speed Rev Limiter $480
MSD Blaster 3 Hi Performance Ignition Coil w/HEI Style Post $65
MSD 8201 Pro Power Coil $159
Composite Distributor Gear (if required)Image Close$125
Timing
Cloyes 2 Piece Aluminum Timing CoverImage Close$195
Oil Pumps - Oil Pans - Vacuum Pump
Lokar Custom Locking & Calibrated Dipstick (Upgrade)Image Close$95
Additional Parts - Labor - Accessories
Cometic MLS (Multi Layered Steel) Head Gaskets $125
SFI Approved Harmonic Balancer (Required At All Race Tracks) $150
ATI SFI Approved Super Damper Balancer (Includes Hone To Fit Labor) $295
Master Power Silent Drive Vacuum Pump Kit For Power BrakesImage Close$589
SFI Heavy Duty Flexplate & ARP Bolt Package $150
Boninfante Severe Duty SFI Flexplate & ARP Bolt PackageImage Close$229
Boninfante SFI Billet Flexplate & ARP Bolt PackageImage Close$395
PowerMaster Hi-Torque Mini StarterImage Close$229
Painless Performance Hot Shot Relay Kit (Recommended for above starter) $39
Edelbrock Aluminum "High Volume" Mechanical Water Pump (Short or Long Version)Image Close$350
Meziere 55GPH Electric Water PumpImage Close$535
Billet Specialties Tru Trac Serpentine SystemImage Close$Call
Billet Specialties V-Track Pulley SystemImage Close$Call
Custom Powder Coating Packages Available $Call
SSRE Engraved Sheet Metal Valve Covers w/BreathersImage Close$375
Show Quality Polished Chrome Plated Finish For Sheet Metal Valve Covers (Additional Charge)Image Close$Call
