Shafiroff Racing Drag Race Engines

Shafiroff Racing 434 Small Block Sportsman Drag Race Engine
Shown With Optional Equipment
Less Carb & Ignition

It's Back! Our 434 Sportsman Engine Now Features The New Brodix 13° Heads And A Dart Iron Eagle Race Block. It Is Still The Most Powerful Smallblock In The Sportsman Series Lineup. Heavy Weight Horsepower In A Lightweight Package With An Unbeatable Price!

  • Cubic Inch
  • Bore & Stroke
  • Horsepower
  • Torque
  • 434
  • 4.155 x 4.000
  • 835 @ 7200 RPM
  • 685 @ 5800 RPM
  • Dart Iron Eagle Race Block w/Billet Splayed Caps & Wide Pan Rails
  • .391" Raised Cam w/BBC Camshaft Core
  • Manley 4340 4.000" Stroke Forged Steel Crank
  • Callies/CompStar 4340 6.000" H-Beam Rods w/ARP 2000 Bolts
  • Clevite 77 "H" Series Main & Rod Bearings
  • SSRE/JE 15.0 Gas Ported Custom Pro Series Forged Pistons
  • 043/043/3MM Backcut Lightweight Ring Package
  • SSRE Custom Grind 7/4 Swap Steel Billet Roller Cam
  • Comp Cams Heavy Duty Raised Bar Solid Roller Lifters
  • Cloyes Billet True Roller Timing Set w/Torrington Bearing
  • Brodix 13° Fully CNC Ported Aluminum Heads
  • Nextek® 1.640" Roller Springs
  • Titanium Retainers & 10° Locks
  • ARP Head Studs w/12-Point Nuts
  • T&D 1.65/1.60 Shaft Rocker System
  • FelPro HP Head Gaskets w/Pre-Flattened Copper Wire
  • Edelbrock (2) Piece Victor Glidden Spider Dominator Intake
  • SSRE/Moroso Pro Series Oil Pan w/Kickout & Louvered Tray
  • Moroso Race Prepped Oil Pump w/Tig-Welded HD Pickup
  • Polished Aluminum Front Cover w/Billet Pointer
  • SFI Approved Harmonic Balancer
  • Complete Assembly Internally Balanced
  • Individually Dyno Tested & Tuned
  • Actual Dyno Sheet Provided
Fuel System Components:
Why Buy A Carburetor From Us?

Yes, you can certainly purchase a stock carb from the big mail order companies but we've seen carbs out of the box down on power as much as 40HP and between 15-20HP is common. That's why we disassemble and blueprint EVERY carburetor before we ever bolt it on your engine. We then tune, adjust and jet your carb on your engine so you get every ounce of power that you paid for.

Even if you're considering one of our Engine Kits or simply looking for a replacement carb, the same blueprint work is done and we dyno test it on a comparable engine to yours before it ships!
$ Priceless

1150 CFM Holley Dominator Carb Package includes: Carb, Phenolic Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine. $ 995
MagnaFuel ProStar 500 Billet Gerotor Electric Fuel Pump $ 399
Ignition Components:
MSD Electronic Ignition Package includes MSD Pro Billet Locked Distributor w/Ford HEI-Style Cap, Bronze Gear, Custom MSD 8.5mm Wire Set. Dyno Tested and Calibrated on your engine. $ 395
MSD Crank Trigger Ignition Upgrade $ 295
MSD 7AL-2 Electronic Ignition Box (Direct Plug-in For Our MSD Distributors) $ 559
MSD 8201 Pro Power Coil $ 116
Short Block Components:
Callies USA Made 4340 Dragonslayer Crank w/Dura-Tough Heat Treating $ 495
Callies USA Made 4340 Magnum Plus Pro Series Crank $ 995
Callies CompStar Pro Series I-Beam Rods $ 395
Oliver Steel Billet Rods $ 895
Cometic MLS (Multi Layered Steel) Head Gaskets $ 95
Calico Coated Bearing Package $ 150
ATI SFI Approved Super Damper Balancer $ 225
Pistons/Pins/Rings:
Hellfire® Rings $ 175
Tool Steel "Heavy Wall" Wrist Pins $ 225
Valvetrain/Timing Components:
HIPPO Severe Duty Roller Lifters w/Hi-Pressure Pin Oiling (Extended Lifter Life) $ 295
Isky Red Zone Solid Roller Lifters w/EZX "Needle Free" Bearing Option $ 695
Needle Bearing Tip Option for T&D Shaft Rockers add $ 240
Jesel .391" Raised Cam Belt Drive (Includes $175 Labor Change For Mandatory Block Machining) $ 1525
Intake Manifolds/Nitrous Systems:
SpeedTech Diffuser Plate Nitrous System - Installed $ 795
SpeedTech Liquid Force "Fogger Style" Nitrous System - Plumbed & Installed $ 1500
Oil Pumps/Oil Pans/Vacuum Pumps:
Moroso HD Billet Aluminum Oil Pump $ 295
Moroso Vacuum Pump Kit w/Adjustable Relief Valve (Installed) $ 975
Remote Oil Filter Mounting Kit includes: Filter Mount, AN Fittings and -12 Braided Line. $ 250
Accessories:

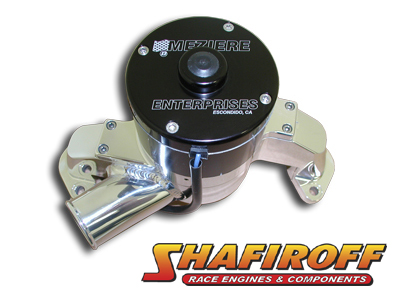

Meziere 55GPH Electric Water Pump $ 450

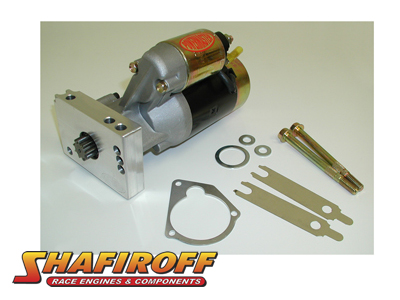

PowerMaster Hi-Torque Mini Starter $ 229
SFI Heavy Duty Flex Plate & ARP Bolt Package $ 125

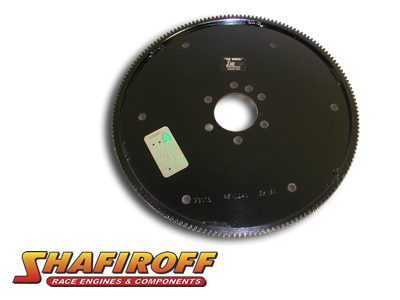

JW "The Wheel" Severe Duty SFI Flex Plate $ 215

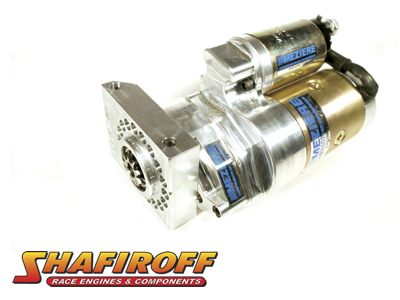

Meziere "Ten Pitch" 2.2KW Starter w/Super Duty Drive (Requires FPT300 Flexplate) $ 525
Meziere "Ten Pitch" True Billet 139 Tooth SFI Flexplate (Requires TST400 Starter) $ 357
PowerMaster XS Power AGM 16 Volt Battery (Only 33 lbs!) $ 249
PowerMaster PWM-1005 16 Volt Battery Charger $ 299
Custom Locking & Calibrated Dipstick $ 95
SSRE Engraved Sheet Metal Valve Covers $ 250
